Pipe Fill

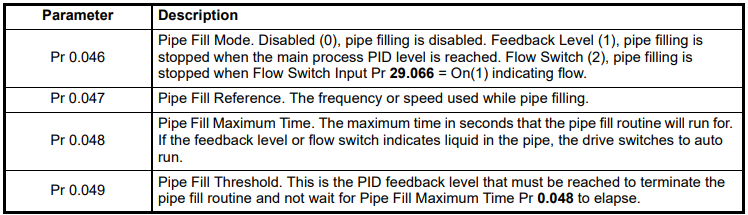

In a pump application, when starting the drive in Auto mode but prior to automatic running, the drive may optionally run a fixed reference pipe filling routine. The routine has a time limit, (maximum time), to run which can be superseded by either reaching a PID feedback threshold or if flow is indicated from a hardware flow switch. When the routine completes, the system moves to Auto Run where the PID controls the motor speed.
