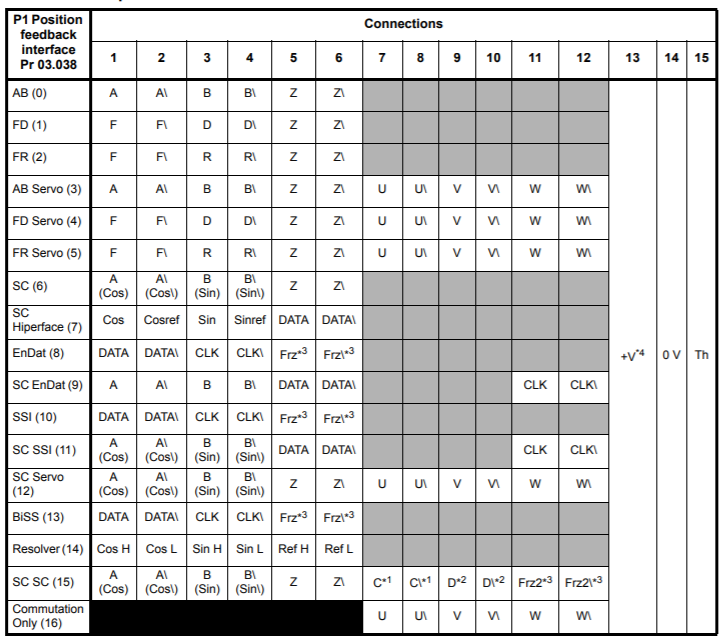

What pins do I connect my encoder signals to on a Unidrive 700 when using the SM-ETC connector?

June 10, 2020 15:46
