How do I reconfigure the function of one of my Mentor MP drive's digital outputs? – Nidec

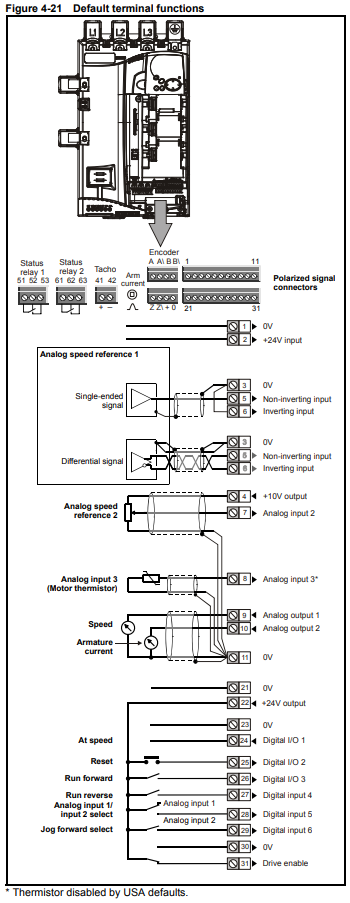

First use figure 4-21 in the Mentor MP user guide to determine which digital I/O (I/O 1, I/O 2, or I/O 3) you are looking to reprogram. (Note that some Digital IO can be configured as Inputs or Outputs via parameter 8.31, 8.32, or 8.33).

Next use section 11.8 of the Mentor MP or Quantum MP user guide to identify the corresponding output select parameter to make the I/O point an output (make sure that parameter is ON to make the terminal in question an output). Use section 11.8 of the Mentor MP or Quantum MP user guide to identify the corresponding source parameter (i.e. for digital I.O 1 it is parameter 8.21). Once that is done navigate to source pointer parameter that matches your terminal and edit the value to your desired parameter source. Press the red reset button on the keypad to make the change take effect.

Perform a parameter save.
